Progress Bar Macro

What It Does

The Progress Bar macro creates a multi-step, cross-page progress bar in Confluence. Each step macro is placed on a separate page. Together they render a unified visual bar that shows readers where they are in a multi-page process - like an onboarding flow, a tutorial series, or a multi-phase procedure.

The bar is automatically scoped to a parent page: all step macros that share the same parent page belong to the same progress bar, with no manual ID configuration required.

How It Works

Add a Progress Bar macro to each page that is part of the flow.

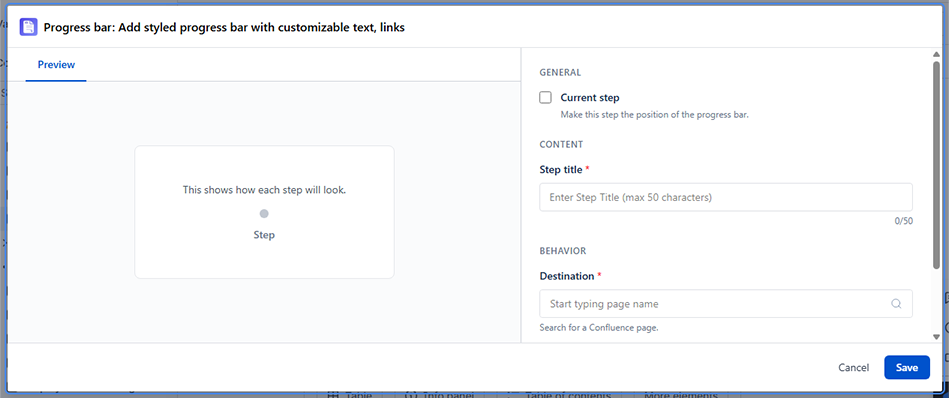

Configure each macro with its step title, step number, and destination (the Confluence page this step links to).
When a reader views any page in the flow, the macro with the lowest step number renders the full progress bar above the content.
The active step (highlighted in the bar) is determined by matching the current page to a step's destination.
Readers can click any step in the bar to navigate directly to that page.

Configuration Options

Setting	Description	Required
Current step	Mark this step as the active position in the bar	No
Step title	Label shown in the bar for this step (max 50 characters)	Yes
Destination	The Confluence page this step navigates to on click	Yes
Step number	Position of this step in the sequence (1–100)	Yes

Visual Behavior

Blue dot - shown on the current (active) step and the first step when no step is active yet
Gray dot - shown on steps that come after the active step (not yet completed)
No dot - completed steps (before the active step) show no dot; the blue line covers them
Blue line - drawn from the first step to the active step to show progress
Step color - defaults to #0052cc; inherits from the color set when saving a step

Scope & Bar Identity

The macro automatically groups steps by shared parent page. You do not need to assign a bar ID manually. Steps on pages that share the same parent are treated as one progress bar. This means you can run independent progress bars across different sections of your space without any naming conflicts.

Setup Example

To build a 3-step onboarding flow:

Create pages: Step 1 – Welcome, Step 2 – Setup, Step 3 – Complete - all as children of an Onboarding parent page.
On Step 1 – Welcome: add a Progress Bar macro, set Step title = "Welcome", Step number = 1, Destination = the Welcome page.
On Step 2 – Setup: add a Progress Bar macro, set Step title = "Setup", Step number = 2, Destination = the Setup page.
On Step 3 – Complete: add a Progress Bar macro, set Step title = "Complete", Step number = 3, Destination = the Complete page.
When any of these pages is viewed, the bar appears above the content showing all three steps with the current page highlighted.

Common Use Cases

Multi-page onboarding or employee orientation flows
Step-by-step tutorial series spread across Confluence pages
Multi-phase project procedures with one page per phase
Training paths where each module lives on its own page
